Product Description
One machine of Metal Detector and Check Weigher
Used to check the single product whether it was polluted by metals and its weight is in accordance with target weight or not. This is an economy, durable and integrative solution.
A solution with metal detection and weight sorting just in one machine. More efficiency, smaller dimension, lower cost.
SPECIFICATION
Theory: Electric Induction/ Digital Load Cell
Aperture Size: 400*200mm (W*H)
Belt Speed: 20~35m/s
Accuracy: ±2g
Weighing Range: 10~3000g
Minimum Scale: 0.1g
Sensitivity: FE 1.5 SUS2.5
Sorting Speed: 50pcs/min.
Product Size (mm): 250L×300W×（10-200）H
Reject Device: Air blast/swing arms/air pusher
Operation Method: Touch Screen
Alarm Method: Buzzer and lamp
Power Source: AC110V/220V 50-60HZ
Power: Appr. 300W
Weight: Appr. 260kg
Dimension: 1630mm (L)*800mm (W)*750±20mm (H)
REMARKS
Accuracy, Sorting Speed and sensitivity are affected by product shape, conditions, nature, bet speed etc.;
FEATURES
2000 logs and easy to look up and print out
High accuracy sensor based on advanced, high speed Digital Processing Technology
Dynamic weight compensate technology, Automatic ZERO point analyze and tracking technology
100 Product Preset; Simple product edit and product store
Quick product change and automatic adjust product sorting speed
Stainless Steel Conveyor with high waterproof level design
Based on friendly touch screen operation
Based on 32bit high speed CPU
Multi-functions operation system and multi-languages for option
Automatic reject system, different reject device for option
Updated Product Learn function
Variety of peripheral system connection and setup
Multi-frequencies for option
Digital Signal processing technology and multiple digital filter

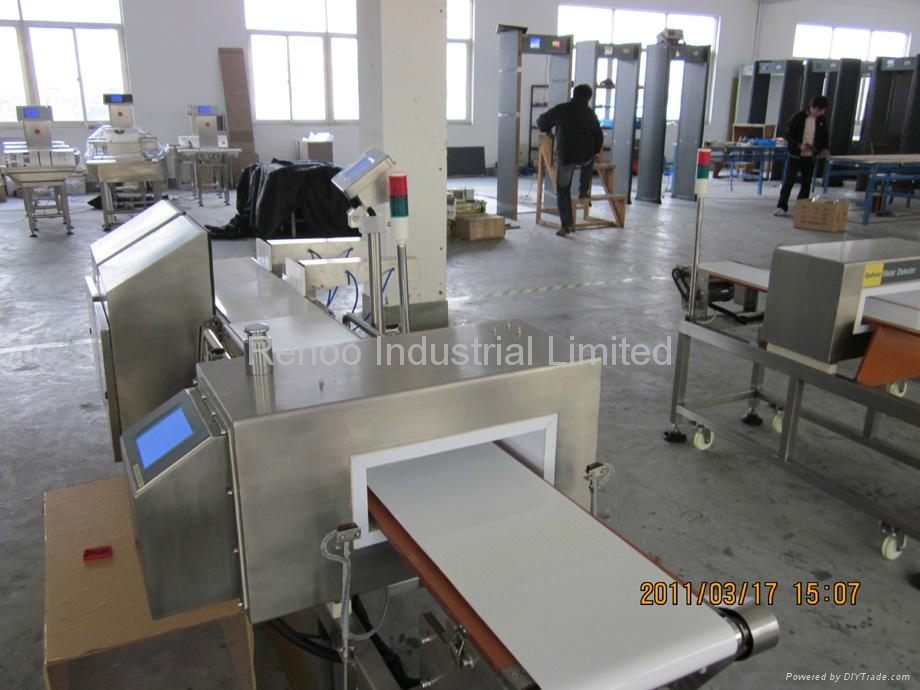

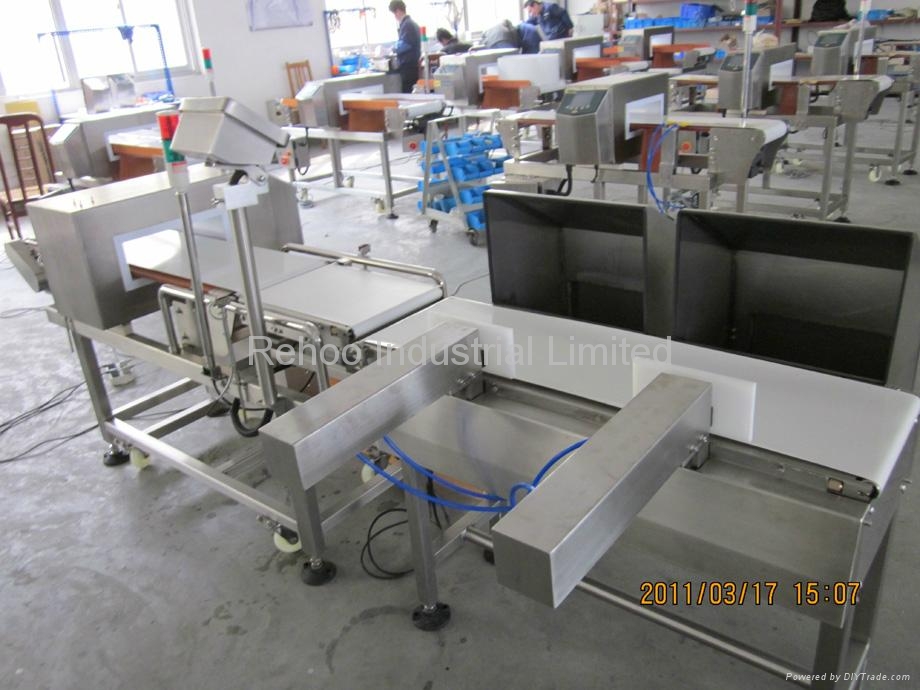

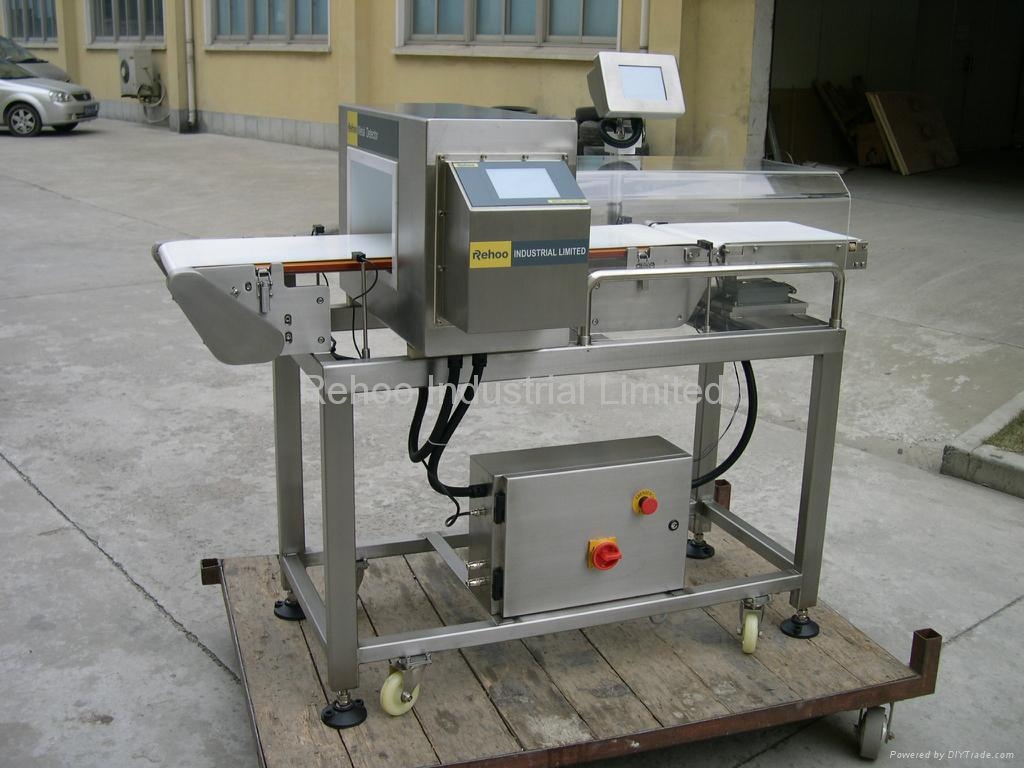

Product Image
